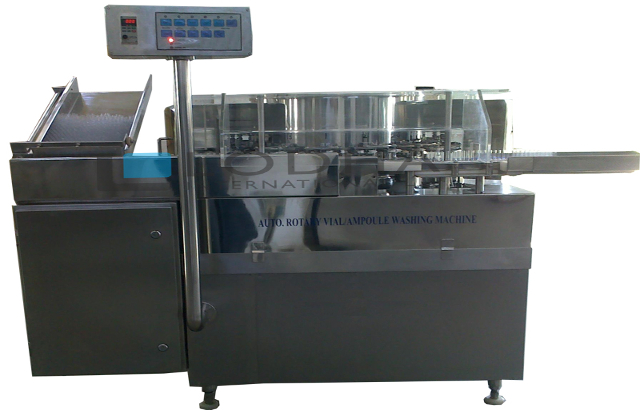

High Speed Rotary Ampoule Washing Machine

High Speed Rotary Ampoule Washing Machine

LODHA is the latest addition to our range of high quality Rotary Ampoule Washing Machine.


Absolute cleanliness and hygiene are paramount in pharmaceutical filling and packaging processes and this becomes of even more importance when you consider injectables filled into glass ampoules. Each ampoule must be absolutely sterile before it goes into the sterile filling area. Lodha, the leader in high technology pharmaceutical machinery offers a high precision ampoule washing machine that meets today's high standards of sterility and hygiene.


Internal Cleaning:

The LI-VRW is equipped with 6 internal cleaning stations and each station has 6 cleaning needles making up a total of 36 cleaning needles. Each cleaning station is supplied via a pipe connected to the cleaning media-making washing area. This not only reduces the risk of particle generation, but also simplifies maintenance and cleaning efforts while saving time.


External Cleaning:

The 3 external cleaning stations mounted in a stationary position above the ampoule can be easily adjusted for a specific height, angle and lateral position. Each cleaning station receives cleaning media-making through a pipe connected to the cleaning media-making washing area.


Cleaning Media Principal:

WFI, Purified water and air cleaning station are synchronized with the ampoule by reciprocating motion. Design is such that these media are put to use only when needles motion in forward direction. WFI consumption is further reduced by collecting the WFI in re-circulating water tank to be used later on in the pre-washing station.
The ideal output of the machine is maximum up to 18000 ampoules/hr.
Lodha also offers Change Part sets for Rotary Ampoule Washing Machine.

Technical Specification:

Sr.No.Machine ModelLI-VRW 120LI-VRW 240
1.Production OutputMax. 120 per minuteMax. 240 per minute
2.Ampoule Diameter9mm to 21.5mm9mm to 21.5mm
3.Ampoule Height60mm to 140mm60mm to 140mm
4.Power Specification4 H.P., 3 Phase 50 Hertz, 4 wire system4 H.P., 3 Phase 50 Hertz, 4 wire system
5.Optional AccessoriesProgrammable Logic Control (System) with MMI
Aluminium Profile Cabinet covering full machine
Programmable Logic Control (System) with MMI
Aluminium Profile Cabinet covering full machine
6.UtilityAir – 20 CFM Water – 200 to 500 litres per hour
depend upon ampoule size
Air – 20 CFM Water – 200 to 500 litres per hour
depend upon ampoule size
7.Water Tank & Pump3 nos. each with 25 Litres
Capacity & Centrifugal pump
3 nos. each with 25 litres
Capacity & Centrifugal pump
8.Overall Dimension2050mm (L) X 2000mm (W) X 1210mm (H)2450mm (L) X 2000mm (W) X 1300mm (H)
