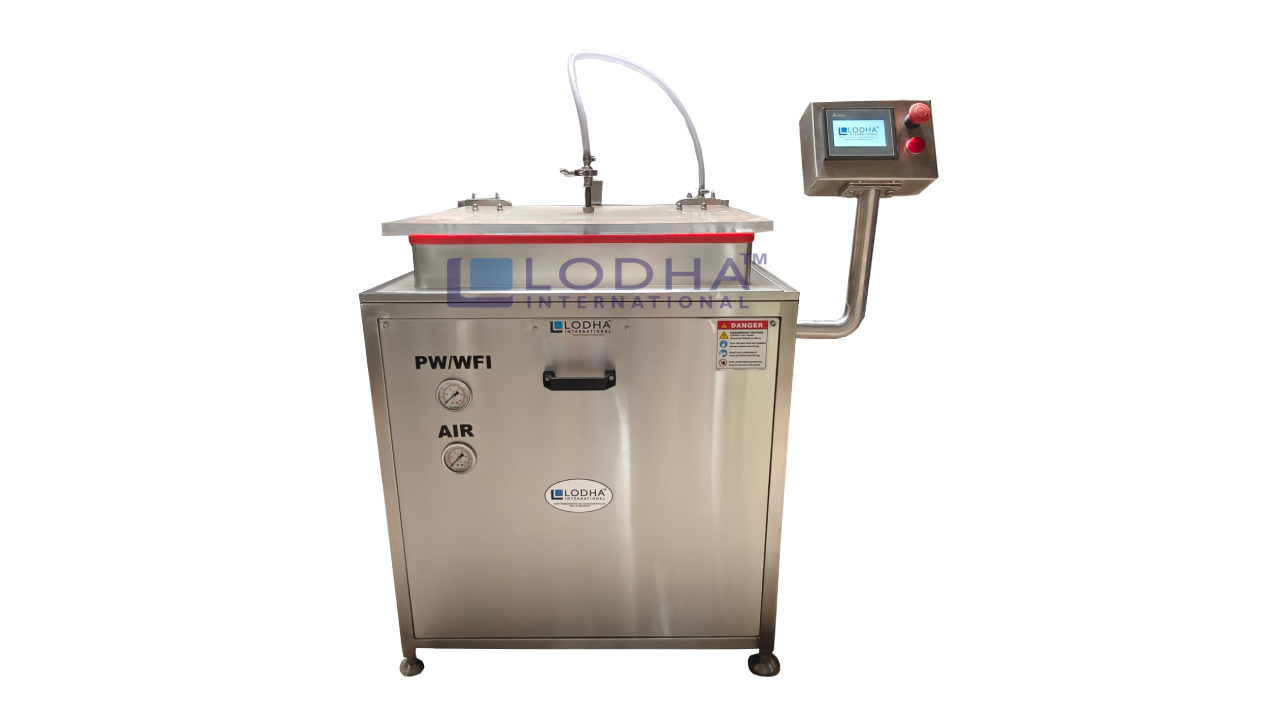

Linear vial washing machine

Semi Automatic Ampoule Vial Washing Machine

Semi-Automatic Ampoule Vial Washing Machine Model: LI-MW 340 is a compact, versatile and a reliable ampoule and vial Washing machine, equipped with the latest GMP standards requirements.

Semi-Automatic Ampoule & Vial Washing Machine is designed with stainless steel construction with compliance to wash ampoule size of 1ml to 20ml and glass vial sizes of 2ml to 100ml with the help of suitable change parts. The standard unit is having mechanical motorized cam operated valve system for observing total six washing in one cycle. Alternatively, timer operated solenoid valve system or microprocessor-controlled timer sequences can be in-corporate upon specific customer request. Multijet Ampoule & Vial Washing Machine is widely use in medium & small scale injectable organizations.

Salient Features:

  • Positive & pressurized jets through washing needle for pressure cleaning at minimum usages for washing media.
  • Sound design concept of pressure tank for reverses & continuous supply of washes medias.
  • Both internal & external washing ensuring absolutely & continuous ampoule / vial after sequential washing.
  • Acrylic top cover for clear view of washing events taking place in the machine.
  • On-line poly carbonates housing with P.P. replaceable filter cartridge of 5 OR 10 micron of water for best possible washing.
  • All contact parts of washing media are of S.S.
  • In the event of acrylic cover lifted during cycle operation, the machine will automatically stop and re-start from the point when cover is pushed down.

Process Operation:

The dump loading procedure may be used, if ampoules/vials are received in ready to dump boxes, which will have exactly into the same number of ampoule/vial and the pitch, as loading tray. Alternatively, each ampoule/vial has to be arranged into the tray. The loading tray/s is placed directly into the machine & the handle bar is lowered for ampoule/vial for automatic centering of washing needles into the ampoule/vial mouths. The top cover is also lowered & switch is operated for automatic sequent.

Sr.No.Washing CyclesWashing Media
1.1st washDM water
2.2nd washPurified Air
3.3rd washDM water
4.4th washPurified Air
5.5th washDistilled Water (WFI)
6.6th washPurified Air

Technical Specification:

Sr.No.Machine ModelLI-MW 340
1.Production Rate30 to 110 Vials/Min.
90 to 160 Ampoules/Min.
2.Ampoule Diameter10mm to 21.5mm
3.Ampoule Height60mm to 140mm
4.Vial Diameter15mm to 56mm
5.Vial Height56mm to 110mm
6.Power Specification0.25 H.P.
7.Electrical Characteristics440 Volts, 3 Phase, 4 Wire System, 50 Hertz
8.Distilled Water2 Kg/cm²
9.Air20 CFM @ 5 bar
10.Overall Dimension990 mm (L) X 860 mm (W) X 940 mm (H)
